Quick answer
A Charpy value is usable only when its test conditions match the purchase requirement. Buyers must verify the governing product standard and edition, test temperature, specimen size, orientation, base-metal or weld/HAZ location, number of specimens, represented heat or lot, acceptance rule and MTC traceability. A high energy number by itself does not prove project compliance.

Why Buyers Search for More Than a Charpy Definition

The Charpy V-notch (CVN) test measures the energy absorbed when a notched specimen is broken by a pendulum impact. In steel pipe procurement, however, the practical question is not simply what the test is. The buyer needs to know whether the tested specimen represents the ordered pipe and whether the result satisfies the correct condition.

A certificate can show a plausible absorbed-energy value and still fail the technical review because the test temperature is too warm, the specimen is subsize without the required treatment, the orientation is wrong, only the pipe body was tested when the weld and heat-affected zone were required, or the heat/lot cannot be traced to the delivered pieces.

This guide supports the Low Temperature Seamless Steel Pipe product page. It extends the existing A333 Grade 6 Selection article by focusing on test definition and evidence, and it connects the result to the Steel Pipe MTC and Pre-shipment Inspection Checklist pages.

Charpy impact test,steel pipe impact test,CVN test,impact test temperature,pipe MTC

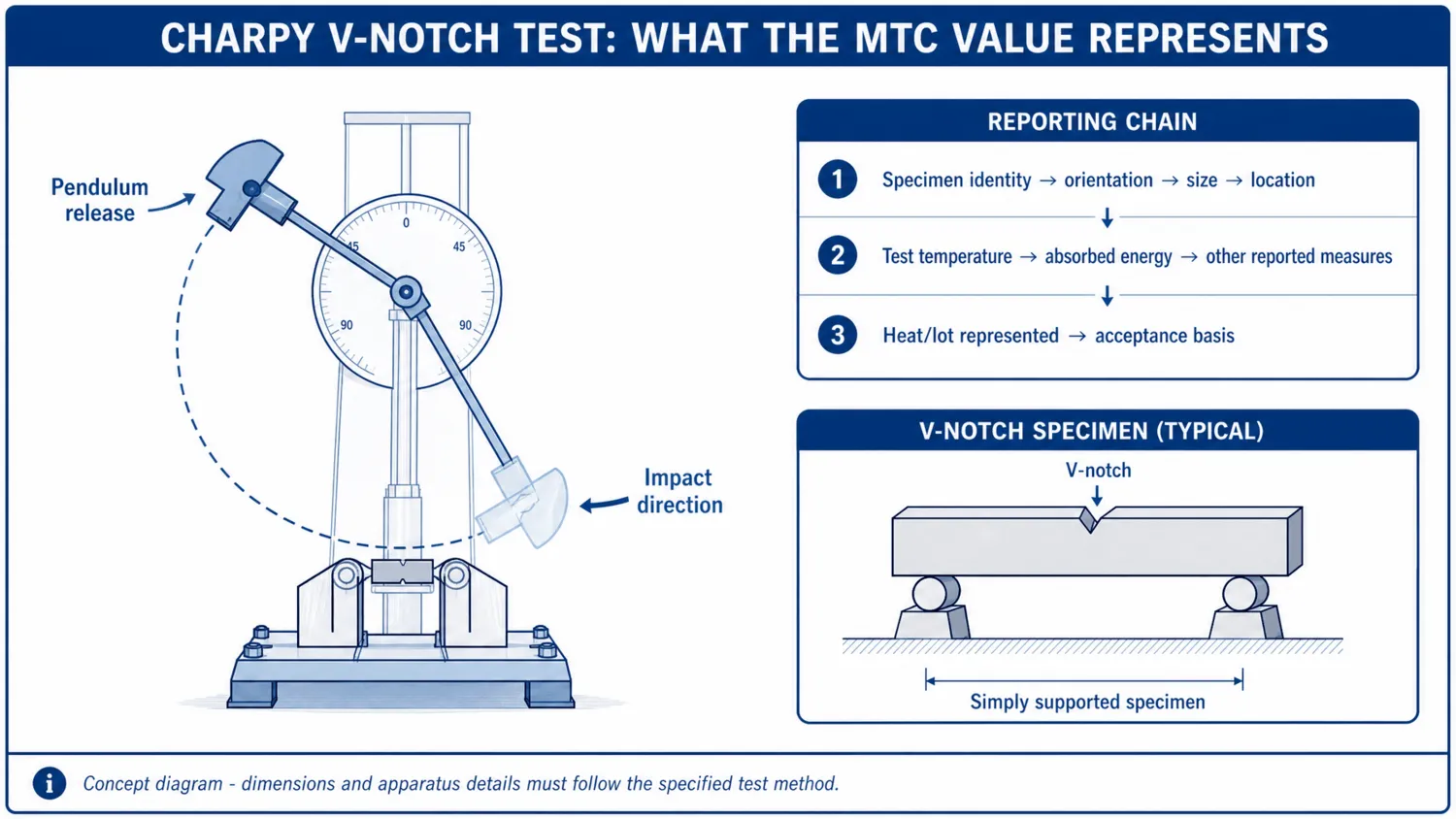

Figure 1. Conceptual Charpy V-notch test and the reporting information that must remain linked to the result.

Start With the Acceptance Chain, Not the Test Machine

The test method explains how the impact test is performed. The product standard, design code and project specification determine whether testing is required, where the specimen comes from, what temperature and acceptance values apply, and whether additional locations must be tested.

Requirement layer	Question it answers	Buyer evidence
Design basis	What is the lowest credible metal temperature and which toughness rules apply?	Line list, piping class, design calculation, MDMT basis and approved deviations.
Product standard	Which grade, delivery condition, sampling and impact requirements govern the pipe?	Standard designation and edition on PO, MTC and supplier offer.
Project specification	Are colder temperatures, higher energies or extra locations required?	Requisition, material specification, datasheet and inspection/test plan.
Test method	How are specimens prepared, conditioned, tested and reported?	Specified ASTM E23, ISO 148-1 or other approved method/edition.
Manufacturing route	Is the pipe seamless or welded, and which locations represent the product?	Manufacturing procedure, heat-treatment record, sampling sketch and test report.
Release documentation	Can each accepted result be traced to delivered material?	MTC, heat/lot list, marking photographs, tags, packing list and inspection release.

Test Temperature: Operating Temperature Is Not Enough

The test temperature must come from the applicable design and material-selection basis. Normal operating temperature can be higher than the lowest pipe-metal temperature reached during startup, shutdown, depressurization, autorefrigeration, blocked-in cooling or winter exposure. The project may therefore specify an impact test temperature below the normal process temperature.

Buyer decision
State the required CVN test temperature in the RFQ and purchase order. Do not ask the mill to select it from an informal service description such as “cold climate” or “LNG project.” The design authority must identify the governing temperature and any code exemption or additional margin.

Temperature term	What it means	Common review error
Ambient temperature	External environment around the pipe	Using the weather minimum as the only material-selection input.
Operating temperature	Expected temperature during normal operation	Ignoring transient or upset cooling.
Design temperature	Temperature used with design pressure and code rules	Assuming it is automatically the CVN test temperature.
Minimum design metal temperature (MDMT)	Defined minimum metal-temperature basis under the project/design code	Failing to document how it was established.
CVN test temperature	Temperature at which specimens are conditioned and broken	Accepting a warmer test because the energy result is high.

Specimen Size: Full-Size and Subsize Results Need Context

A commonly recognized full-size Charpy V-notch specimen is 10 mm × 10 mm × 55 mm. Pipe wall thickness, curvature and sampling location may prevent a full-size specimen from being extracted, so product standards may permit reduced-width specimens such as 10 mm × 7.5 mm × 55 mm or 10 mm × 5 mm × 55 mm under defined conditions.

Subsize testing is not merely a smaller coupon with the same interpretation. The governing product standard or project rule may change the test temperature, acceptance energy or both. The MTC should identify specimen size; if it does not, the buyer cannot confirm which acceptance basis was applied.

Specimen check	What to confirm	Why it changes the decision
Nominal specimen dimensions	Full-size or permitted subsize, including units	The acceptance basis may differ with specimen size.
Available wall section	Whether the ordered wall can physically provide the specified coupon	Thin wall or curvature can restrict specimen extraction.
Machining and notch	Approved preparation and notch orientation	Poor preparation can invalidate or bias a result.
Conditioning	Actual specimen temperature and transfer/control procedure	The result must represent the stated test temperature.
Reporting	Size shown beside each result or clearly tied to the test set	Prevents a full-size criterion from being applied to subsize data.

Copyright and data boundary
The dimensions above are limited specimen-identification examples, not a reproduction of ASTM E23, ISO 148-1 or any product-standard acceptance table. Use the licensed/current method and product standard for notch geometry, permitted subsizes, conditioning, acceptance and retest rules.

Orientation: Write the Pipe Direction in Plain Language

Charpy orientation codes can be interpreted differently when teams switch between plate rolling directions, pipe axes and laboratory notation. A purchase order should therefore state both the code required by the governing document and a plain-language description of the specimen axis and notch orientation relative to the pipe axis or weld.

Item	Buyer should state or verify	Evidence expected
Pipe body orientation	Longitudinal or transverse specimen relative to the pipe axis	Sampling sketch and test report/MTC field.
Notch orientation	Direction and surface/through-wall relationship required by the specification	Laboratory specimen identification.
Welded pipe	Pipe body, weld centerline and/or HAZ locations required	Location-specific results rather than one unlabeled value.
Seamless pipe	Circumferential sampling position and orientation where specified	Test-unit and sampling records.
Formed/heat-treated product	Sampling after the required final processing condition	Heat-treatment batch and specimen traceability.

Base Metal, Weld and HAZ Are Different Evidence

For seamless pipe, the impact specimen normally represents the pipe body at the specified sampling position and orientation. For welded pipe, the body result cannot automatically represent the weld metal or heat-affected zone. The manufacturing process, diameter, wall, grade, PSL level and project specification determine which locations require testing.

For line pipe, confirm the ordered API 5L edition and PSL rather than using a generic statement such as “PSL2 includes Charpy.” API announced the 47th edition of API Spec 5L in June 2026 and identified impact-toughness requirements among the updated areas. The purchase order must name the edition adopted by the project and any supplementary or service-specific requirements.

Test location	What it represents	Release question
Pipe body/base metal	Parent material and its processing condition	Does the orientation, position and test unit match the ordered product?
Weld centerline	Weld metal produced by the qualified manufacturing route	Was weld testing required for this pipe type, size, grade and project?
Heat-affected zone	Material altered by the seam-welding thermal cycle	Is the notch location defined and documented?
Repair weld	Localized repair procedure and affected material	Do the product/project rules require separate qualification or testing?

Absorbed Energy, Set Rules and Additional Measures

Absorbed energy, usually reported in joules, is the result most buyers recognize. Some specifications also use individual-versus-average rules, shear-fracture appearance or lateral expansion. These measures answer different toughness questions and should not be substituted for one another unless the governing document permits it.

Many specifications evaluate a set of specimens rather than one isolated value, but the number of specimens, minimum average, permitted individual value and additional reporting requirements are product- and project-specific. The MTC should show all required individual results, not only an average that hides a low specimen.

Reported item	What to check	Do not assume
Absorbed energy	Units, each specimen, average where required and acceptance basis	A higher number at a warmer temperature is equivalent.
Shear fracture	Whether estimation/reporting is required and how it was assessed	It can replace an energy requirement.
Lateral expansion	Whether the product/project specification requires it	It is automatically included on every pipe MTC.
Invalid test	Reason, machine/specimen evidence and approved disposition	Every low value can be discarded as a laboratory error.
Retest	Trigger, new specimen set, represented lot and final certification trail	A passing retest erases the original result or lot history.

Retest and Nonconformance: Preserve the Original Evidence

1. Place the represented heat/test unit on hold and identify all affected pipe pieces.

2. Check whether the test was valid: specimen identity, dimensions, notch, temperature, machine status and reporting units.

3. Apply only the retest route permitted by the governing product standard and project documents.

4. Keep the original result, retest results and disposition linked; do not issue a certificate that silently removes the failed set.

5. Obtain purchaser/design-authority approval for any concession, downgrade, re-heat-treatment or alternative disposition required by contract.

Charpy impact test,steel pipe impact test,CVN test,impact test temperature,pipe MTC

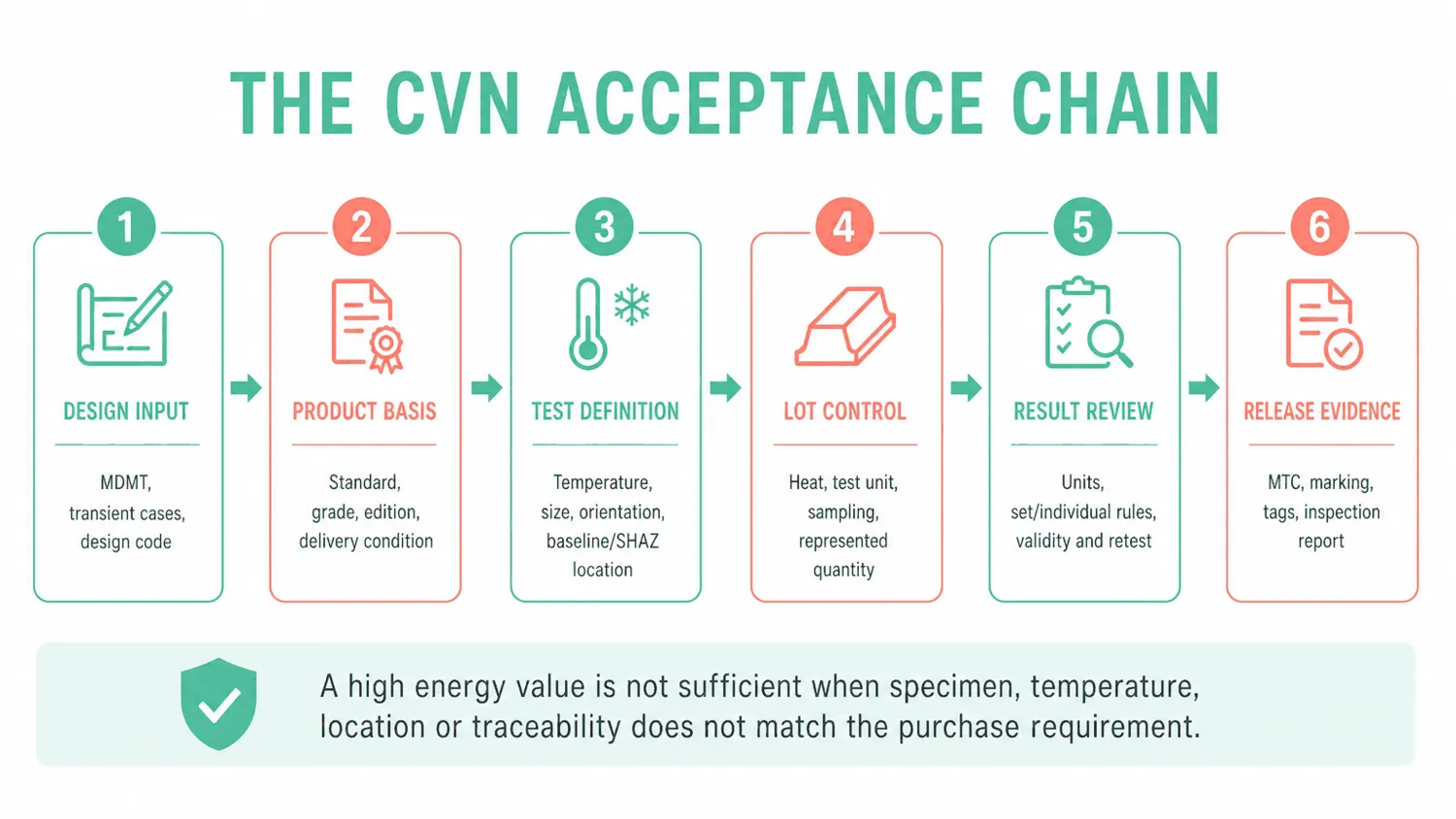

Figure 2. The CVN result is the middle of an evidence chain, not a stand-alone release number.

How to Review Charpy Results on the MTC

MTC field	Pass question	Red flag
Standard/grade/edition	Does it exactly match the PO and approved deviation list?	Only a generic grade name is shown.
Heat and test unit	Can the results be tied to delivered markings, tags and packing list?	Heat number matches, but lot/test-unit scope is missing.
Delivery condition	Was testing performed in the required final heat-treated condition?	Heat treatment is absent or inconsistent with the grade.
Test temperature	Is the actual temperature at or below the required condition?	Temperature omitted or warmer than the PO requirement.
Specimen size	Is the full-size/subsize basis identified and permitted?	Energy shown without specimen dimensions.
Orientation/location	Do pipe body, weld and HAZ fields match the ordered scope?	One unlabeled set of values for welded pipe.
Individual results	Are all specimens and required derived results visible with units?	Only an average or “PASS” is printed.
Retest/disposition	Are original and retest records linked and contractually accepted?	A replacement page has no nonconformance trail.
Validation	Is the certificate authorized and consistent with supporting inspection records?	Unsigned document or inconsistent dates/quantities.

Use the site's full How to Read a Steel Pipe MTC guide to cross-check chemistry, tensile properties, heat treatment, NDT/hydrotest and heat traceability in addition to CVN data.

RFQ Template for Charpy-Tested Steel Pipe

RFQ field	Buyer entry
Product	Pipe standard and edition; grade; seamless/welded route; PSL or delivery condition where applicable
Dimensions	NPS/OD, Schedule or nominal wall, length and quantity
Design basis	Governing code, design pressure/temperature, MDMT and relevant transient conditions
CVN requirement	Test method/edition, temperature, specimen size rules, orientation and required locations
Acceptance	Average/individual energy or other measures exactly as required by product/project documents
Sampling	Heat, lot/test-unit definition, frequency and represented quantity
Retest and deviations	Applicable rule, notification point and purchaser approval requirement
Inspection	ITP hold/witness points, third-party role, laboratory accreditation or approval where required
Documents	MTC type, raw lab report if required, heat-treatment chart, sampling sketch, traceability list and release note

Pre-Release Buyer Checklist

· The required test temperature comes from an approved design/material basis, not an informal operating estimate.

· The product standard and edition on the MTC match the PO.

· Specimen size, orientation and test location are visible and acceptable.

· The pipe body, weld and HAZ scope matches the manufacturing route and project requirement.

· Every required individual result is shown with units and tied to the correct heat/test unit.

· Any invalid test or retest has a complete, reviewable record and approved disposition.

· MTC heat/lot identifiers match pipe marking, tags, packing list and inspection release.

· Third-party witnessing or document review is completed before shipment where required.

Conclusion

A Charpy impact test becomes procurement evidence only when the test condition, specimen, location, represented lot and acceptance rule are controlled. Buyers should write those fields into the RFQ before the mill selects material and test units; attempting to reconstruct them after production can make valid certification impossible.

Forever Steel can review the grade, dimensions, MDMT/test temperature, manufacturing route, CVN scope and document requirements for low-temperature seamless steel pipe and API 5L seamless line pipe inquiries. Final acceptance remains subject to the governing standard, design code, project specification and purchaser approval.

References and Version Control

This article summarizes buyer decision points and does not reproduce controlled standards tables. The purchased standard edition, governing design code and contract documents take precedence.

1.ASTM E23-25 — Notched Bar Impact Testing of Metallic Materials — Official active test-method entry; scope includes specimens, procedures, reporting, machine verification and orientation. Accessed September 4, 2026.

2.ISO 148-1:2016 — Metallic Materials, Charpy Pendulum Impact Test — Official ISO entry; edition 3 remains current after 2023 confirmation, with revision activity noted. Accessed September 4, 2026.

3.ASTM A333/A333M-24 — Low-Temperature Steel Pipe — Official active product-standard entry for pipe requiring notch toughness. Accessed September 4, 2026.

4.API Specification 5L, 47th Edition — Official API edition announcement and scope; accessed September 4, 2026.
