A practical guide for buyers comparing Sch 40, Sch 80 and direct thickness notation

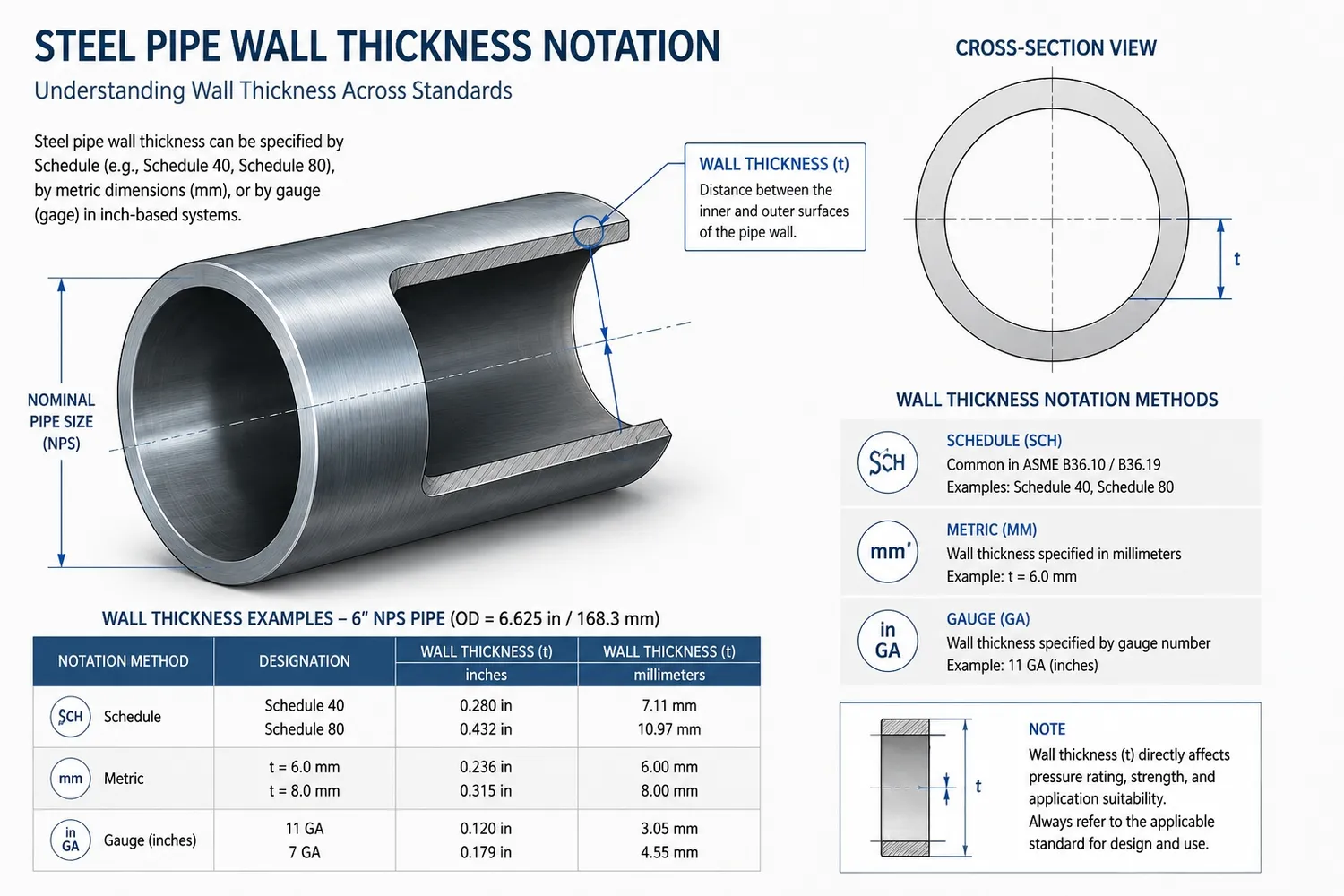

Wall thickness is one of the most important data points in pipe procurement because it affects pressure capacity, service life, weight, welding behavior, and corrosion allowance. Around the world, pipe wall is commonly written as Schedule, direct millimeter thickness, direct inch thickness, or in some legacy cases by gauge notation. A good industrial website should explain these systems in plain language so buyers can move from inquiry to specification with fewer clarification rounds.
Schedule is widely used in ASTM and ASME-based projects, but it is not a direct thickness value by itself. The same Schedule number becomes a different actual thickness when the pipe size changes. That is why a reader who starts with Sch 40 steel pipe may still need to compare exact wall values before deciding whether the order should move toward seamless steel pipe, ERW steel pipe, or another product route.
Exact metric thickness is especially common in export manufacturing. Buyers often send dimensions such as 114.3 x 6.02 mm or 168.3 x 7.11 mm because this format is clear for production, inspection, and packing. In product-focused content, this is a natural point to guide the reader toward carbon steel pipe, galvanized steel pipe, or coated steel pipe pages where the same wall-thickness logic appears under different materials and surface conditions.
Thicker-wall requirements usually create stronger purchase intent, because the buyer is already filtering for pressure or mechanical performance. In those cases, natural internal-link wording such as Sch 80 seamless pipe, thick wall steel pipe, or API 5L line pipe makes sense inside the explanation itself. The link becomes part of the decision path rather than a separate keyword block.
For global buyers, the best content format is to explain the naming systems first, then show tables that compare Schedule, metric thickness, inch thickness, and common gauge references. This makes the page practical for engineers, sourcing teams, and distributors who need to reconcile different order-writing habits before sending a final pipe inquiry.
|
Method |
Full Name |
Typical Usage |
Example |
Notes |
|
Sch |
Schedule |
USA, international pressure piping |
Sch 40 |
Standardized wall series; exact thickness depends on size |
|
WT (mm) |
Wall thickness in millimeters |
Global manufacturing and export |
6.02 mm |
Direct metric thickness |
|
WT (inch) |
Wall thickness in inches |
Fabrication drawings and QC |
0.237" |
Direct imperial thickness |
|
BWG |
Birmingham Wire Gauge |
Legacy industrial usage |
10 BWG |
Must be converted into actual mm or inch thickness |
|
SWG |
Standard Wire Gauge |
Selected regional and legacy use |
12 SWG |
Should be reconfirmed against exact thickness before ordering |
|
Pipe Size |
Schedule |
Wall Thickness (inch) |
Wall Thickness (mm) |
|
NPS 4 |
Sch 10 |
0.120 |
3.05 |
|
NPS 4 |
Sch 20 |
0.156 |
3.96 |
|
NPS 4 |
Sch 30 |
0.188 |
4.78 |
|
NPS 4 |
Sch 40 |
0.237 |
6.02 |
|
NPS 4 |
Sch 60 |
0.280 |
7.11 |
|
NPS 4 |
Sch 80 |
0.337 |
8.56 |
|
NPS 4 |
Sch 100 |
0.438 |
11.13 |
|
NPS 4 |
Sch 120 |
0.531 |
13.49 |
|
NPS 4 |
Sch 140 |
0.594 |
15.09 |
|
NPS 4 |
Sch 160 |
0.674 |
17.12 |
|
Pipe Size |
Sch 40 (inch) |
Sch 40 (mm) |
Sch 80 (inch) |
Sch 80 (mm) |
|
NPS 1 |
0.133 |
3.38 |
0.179 |
4.55 |
|
NPS 1-1/2 |
0.145 |
3.68 |
0.200 |
5.08 |
|
NPS 2 |
0.154 |
3.91 |
0.218 |
5.54 |
|
NPS 3 |
0.216 |
5.49 |
0.300 |
7.62 |
|
NPS 4 |
0.237 |
6.02 |
0.337 |
8.56 |
|
NPS 6 |
0.280 |
7.11 |
0.432 |
10.97 |
|
NPS 8 |
0.322 |
8.18 |
0.500 |
12.70 |
|
NPS 10 |
0.365 |
9.27 |
0.500 |
12.70 |
|
NPS 12 |
0.406 |
10.31 |
0.500 |
12.70 |
|
BWG |
Thickness (inch) |
Thickness (mm) |
Typical Use Note |
|
8 |
0.165 |
4.19 |
Heavy industrial or structural reference |
|
10 |
0.134 |
3.40 |
Common legacy steel tube reference |
|
11 |
0.120 |
3.05 |
Often close to lighter industrial pipe walls |
|
12 |
0.109 |
2.77 |
Used in selected tube and sheet-based references |
|
13 |
0.095 |
2.41 |
Lighter wall requirement |
|
14 |
0.083 |
2.11 |
Light industrial or fabrication usage |
|
16 |
0.065 |
1.65 |
Thin-wall usage |
|
18 |
0.049 |
1.24 |
Lighter tube applications |
|
20 |
0.035 |
0.89 |
Very light gauge reference |
|
Order Style |
Example |
What It Tells the Supplier |
|
NPS + Schedule |
NPS 6, Sch 40 API 5L line pipe |
Standardized pressure pipe wall series |
|
OD x WT in mm |
168.3 x 7.11 mm carbon steel pipe |
Direct production dimension in metric form |
|
OD x WT in inch |
6.625" x 0.280" seamless steel pipe |
Direct production dimension in imperial form |
|
Gauge notation |
3 in pipe, 10 BWG |
Legacy shorthand that should be verified against exact thickness |
|
Nominal description |
4 inch thick wall steel pipe |
Commercial expression that still needs exact WT confirmation |
· Pipe Schedule Chart: Steel Pipe Dimensions and Wall Thickness
· Steel Pipe Weight: Formula, Reference Chart and Shipping Estimates
· Steel Pipe Specification Review Before Production: How We Avoid Wrong Material or Wrong Standard
1.ASME —B36.10M — Welded and Seamless Wrought Steel Pipe. Primary dimensional reference for NPS, outside diameter, wall thickness and schedule designations for wrought steel pipe.
2.ASME —Product Standardization and Specifications. Explains the role of B36 dimensional standards, including B36.10M and B36.19M, in pipe standardization.
3.NIST —Guide for the Use of the International System of Units (SI). Supports consistent conversion and presentation of millimetres, inches and other measurement units.
4.ASTM International —ASTM A106/A106M — Seamless Carbon Steel Pipe for High-Temperature Service. Shows how a material specification references pipe dimensions, permitted variations and ordering requirements rather than replacing the dimensional standard.
5.American Petroleum Institute —API Specification 5L, 47th Edition. Provides the line-pipe specification context for dimensions, tolerances, product specification levels and ordering information.
Applicability note: Schedule is a dimensional designation, not a direct pressure rating and not an interchangeable substitute for a specified wall thickness. Final selection requires the governing design code, material grade, corrosion allowance, tolerance, temperature and project specification.
